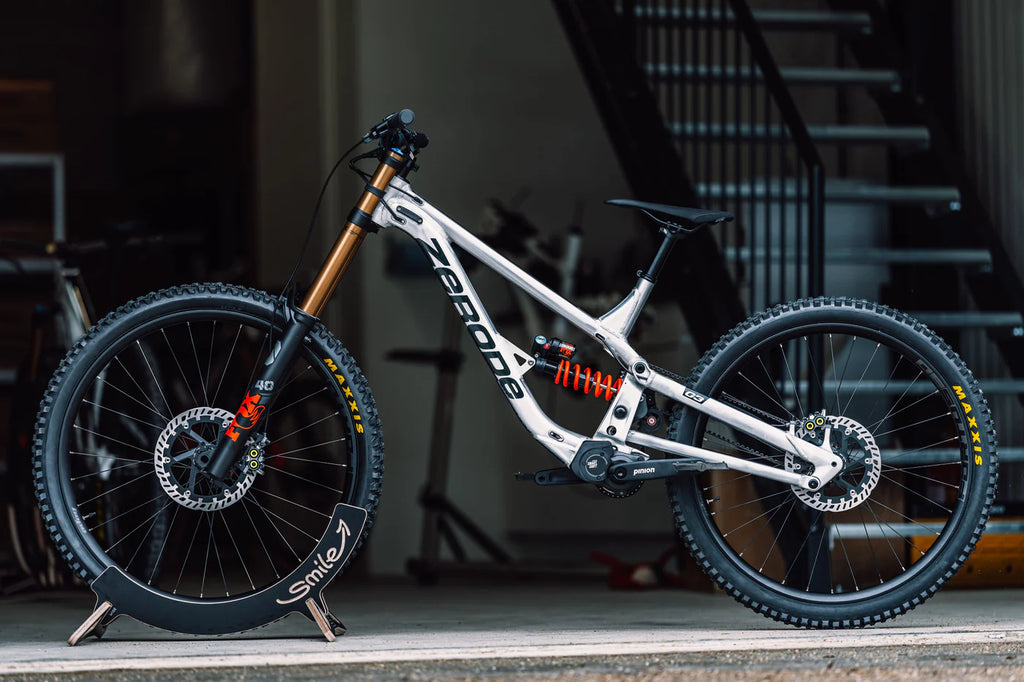

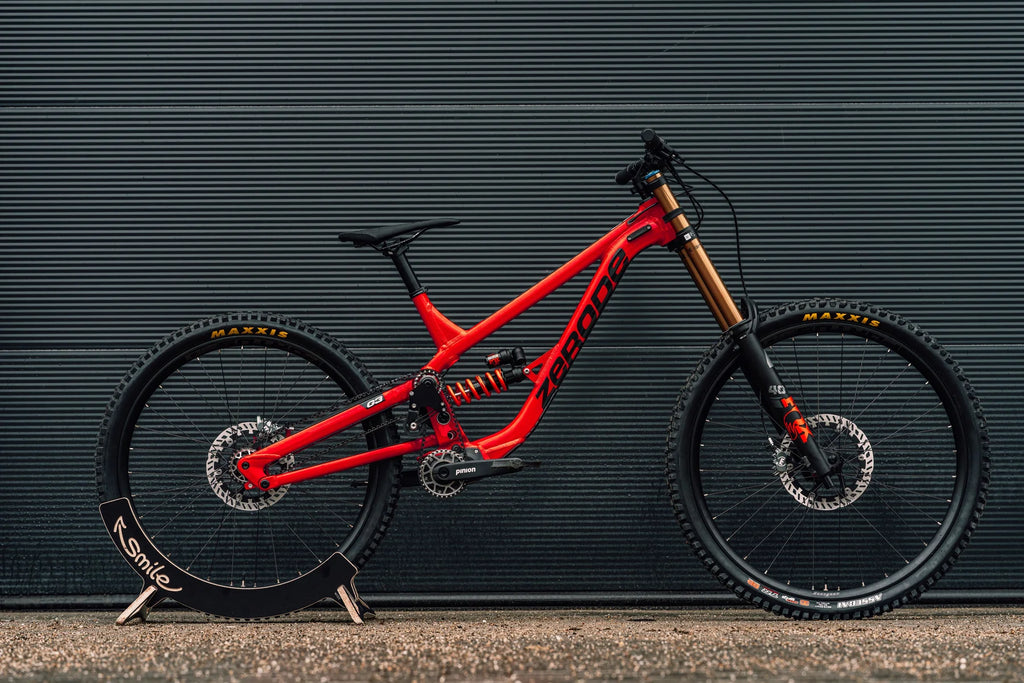

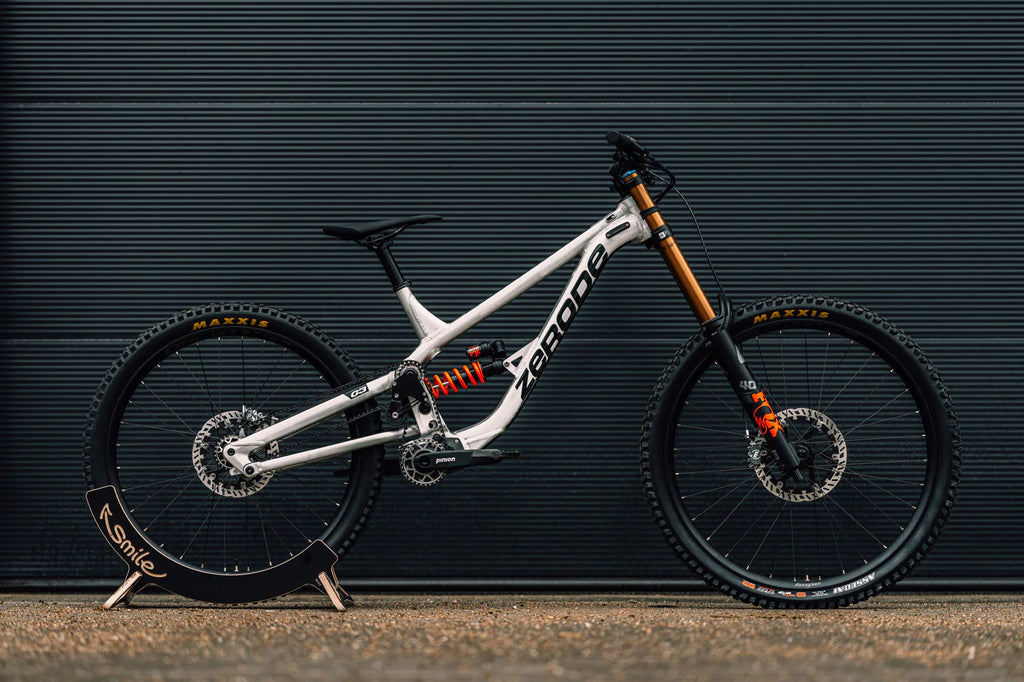

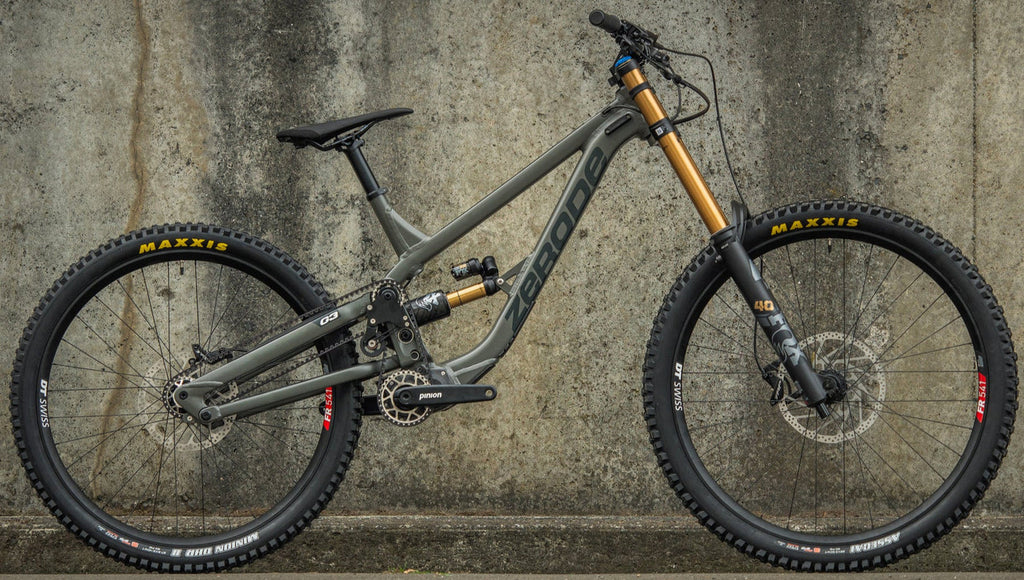

Zerode G3 Deluxe

Zerode G3 Deluxe

£7,244.85
Color
Size

Specifications

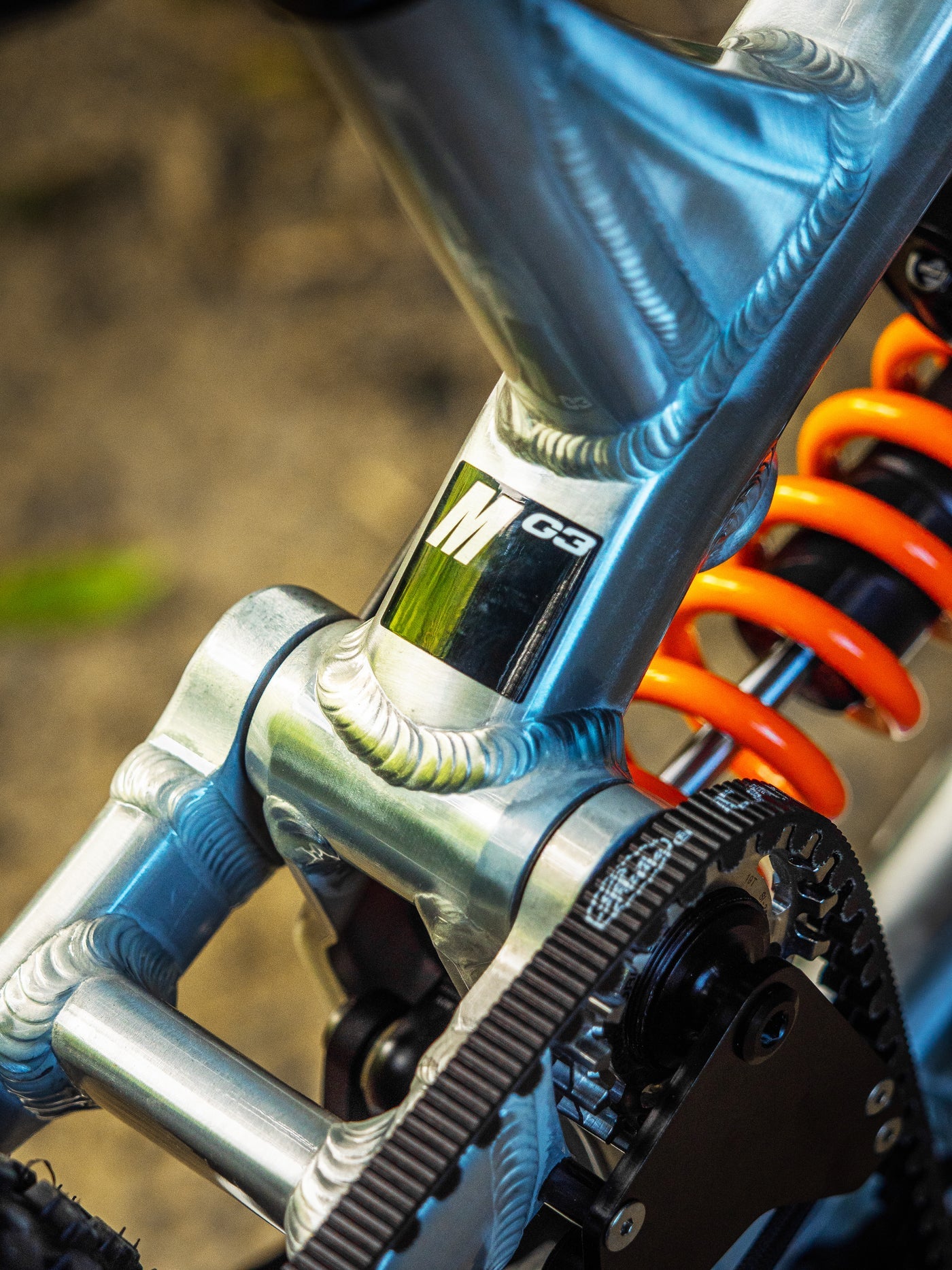

  • Frame: Zerode G3 high pivot alloy 200 mm travel

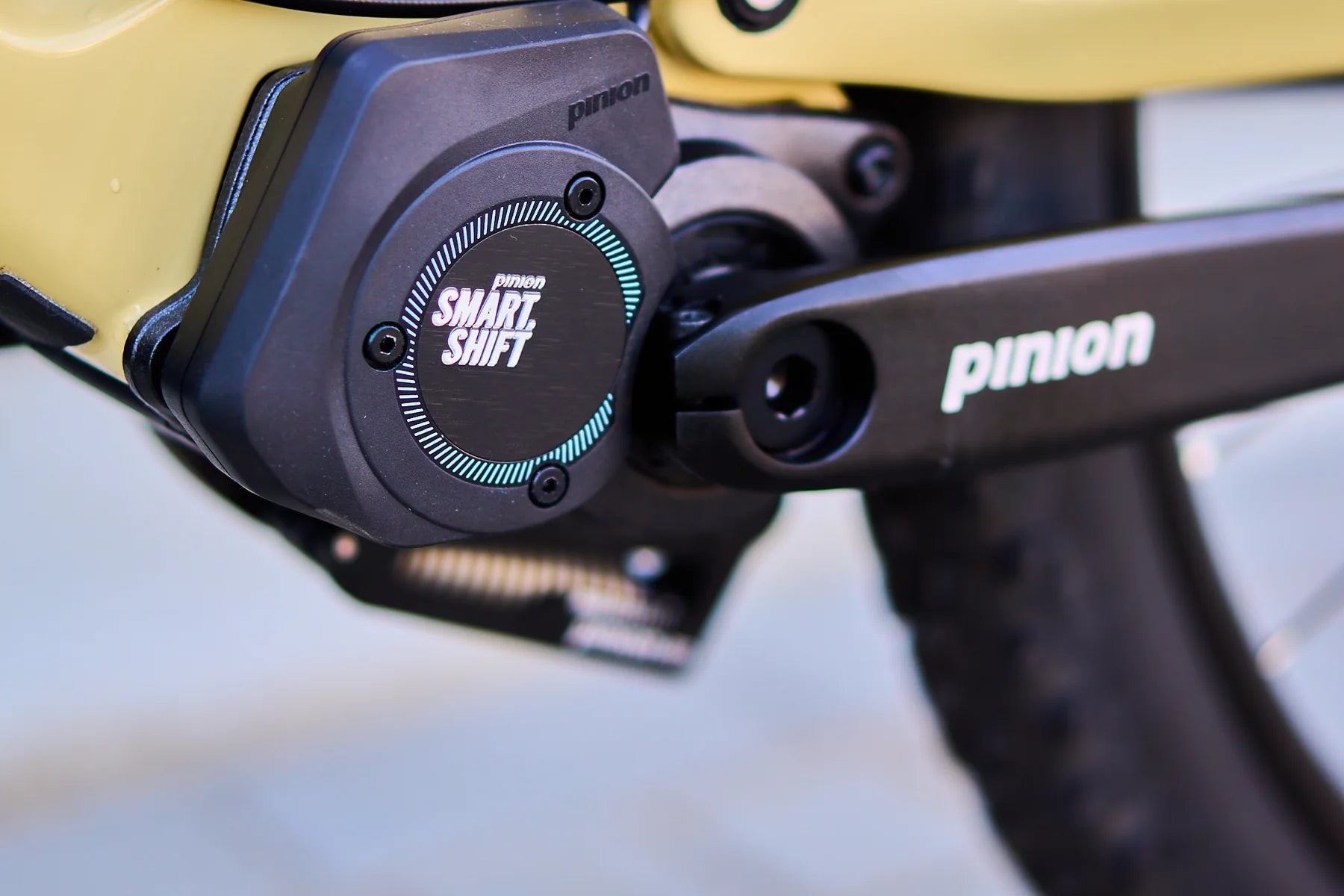

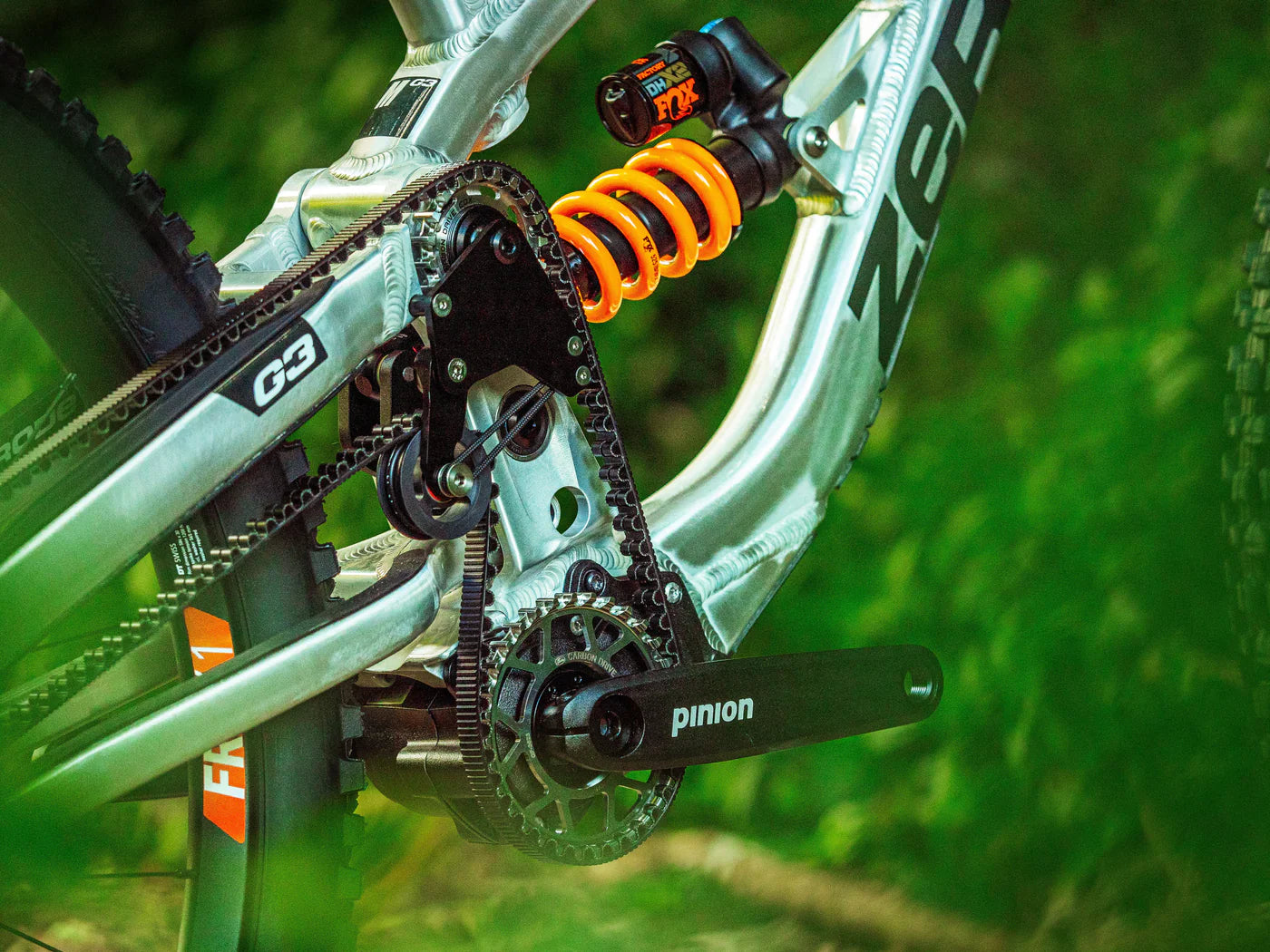

  • Gearbox and shifter: Pinion C1.6i - 6 speed, Smart.Shift, electronic trigger shifter
  • Fork: Fox 40 Factory kashima 29 GRIP X2 203 mm travel
  • Shock: Fox DHX2 Factory 250x75

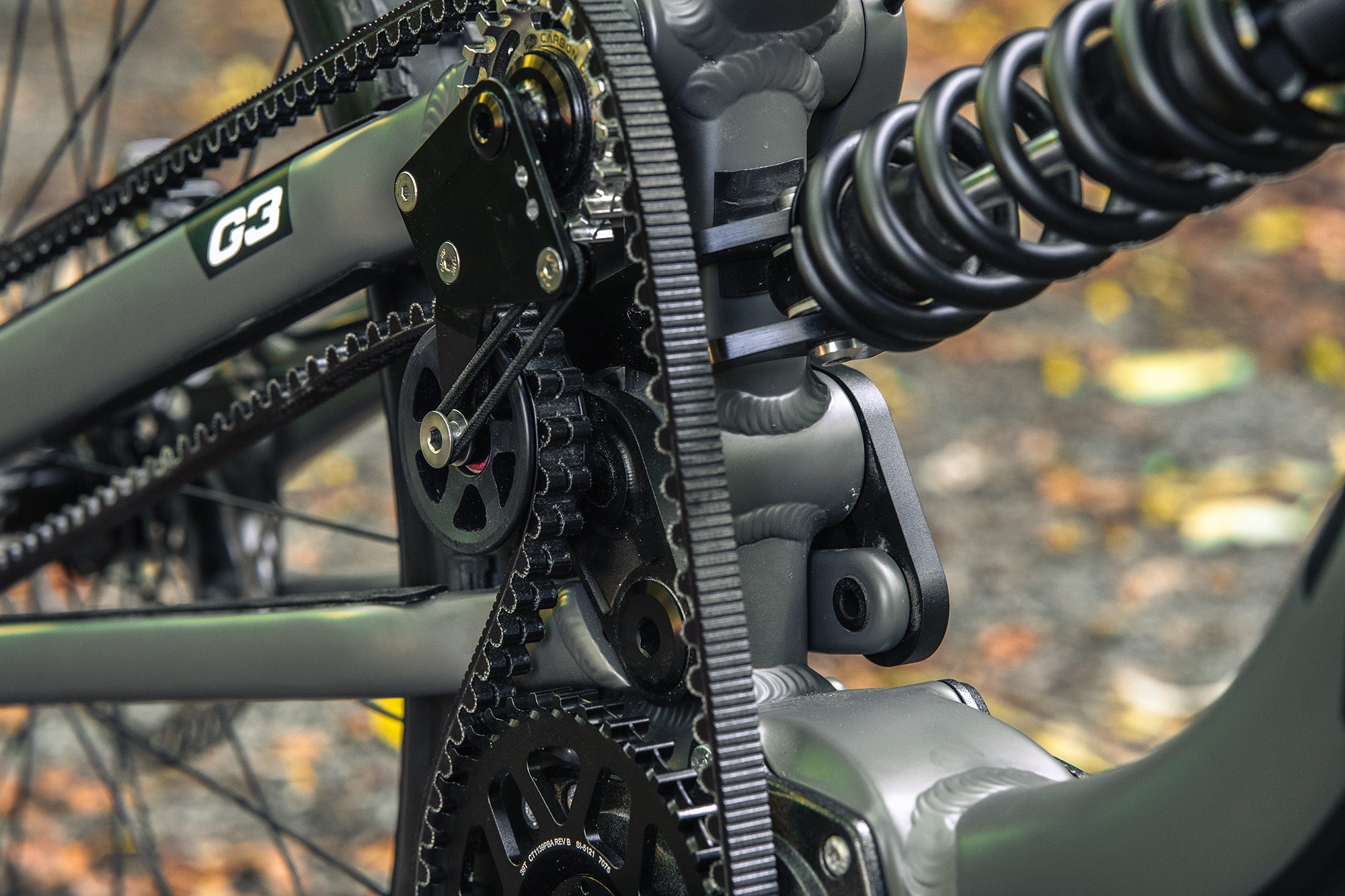

  • Belt: Gates CDX 143t
  • Sprockets: Gates CDX stainless steel
  • Cranks: Pinion 165 mm
  • Rims: Hope Fortus 30
  • Hubs: Hope Pro 5, 142 mm single speed rear hub
  • Tyres: Maxxis. Front Assegai, Rear DHR ll
  • Brakes: Hayes Dominion A4
  • Rotors: Front: 203 mm, Rear: 203 mm

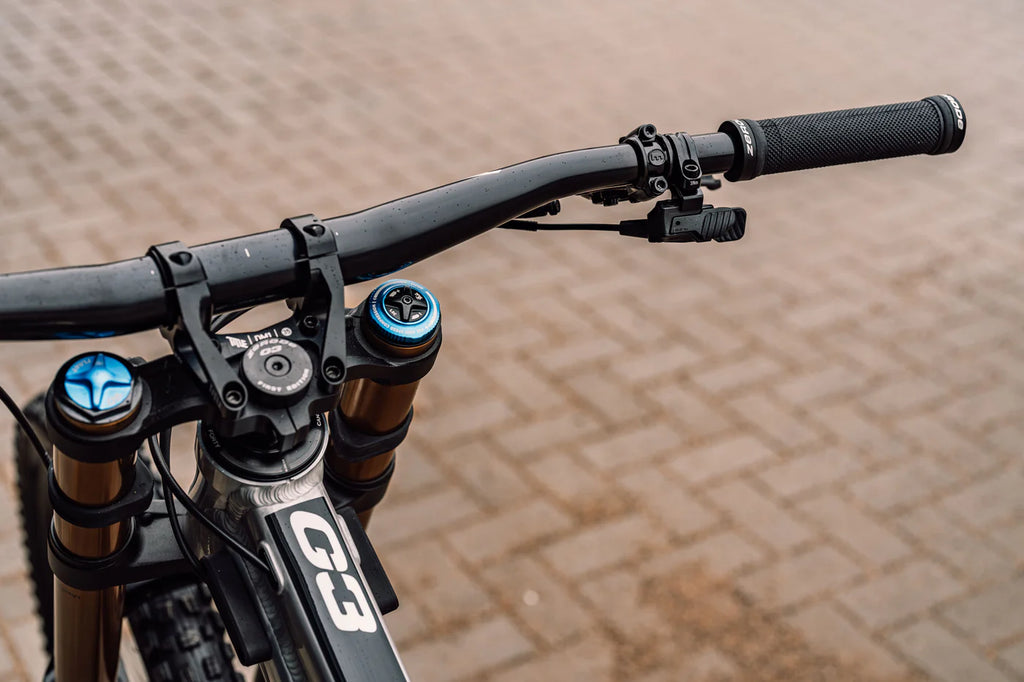

  • Bar: Title AH-1 35 25 mm rise black
  • Stem: Title DM-1 35 black
  • Grips: Title LO1
  • Saddle: Title MS-1
  • Seatpost: Title AP-1 31.6
  • Headset: Cane Creek 40 - zs56/zs56
  • Weight: 19,3 kg (Large, including Smart.Shift)

.THE PHYSICS
BEHIND THE PERFORMANCE

At the heart of all our bikes is the concept of Low Unsprung Mass and the G3 leverages this to its full extent.

Unsprung Mass is the mass of every component unsupported by the bike's suspension that needs to move/rotate when the wheel hits a bump;  wheel, tyre, some of the rear stays, brakes, and of course cluster and derailleurs. When the rear wheel hits an obstacle we want it to react in a way that minimises the disturbance to the chassis and rider.

Thus maximising grip, minimising rider fatigue and reducing resistance to motion. The lower the unsprung mass the less disturbance is transferred to the chassis and rider. This results in more grip, the ability to hold higher speeds through rough sections, less fatigue and a more stable ride. Removing the weight of the cluster and derailleur and moving this to a low centralised position in the gearbox has a significant impact on unsprung weight and suspension performance.

Some may argue the weight of a modern cluster and derailleur is relatively low, but as a ratio to  the other unsprung components, a cluster and derailleur can easily make up 15% of the overall unsprung mass of a traditional bike.

Please contact us in regards to ordering Zerode bikes. Call us on 07983067195 and get the best price possible and we can talk you through all purchase options available in the shop. Also allow 2-3 weeks once ordered we hope to have bikes ready for people sooner than this however we cannot always guarantee we will have all sizes and colours in stock.
